Hydraulic Power Packs
Subsea Forge hydraulic power packs are designed to provide maximum efficiency, reliability, and continuous performance for hydraulic impact hammers, vibro hammers, rotary heads, and other hydraulic systems. Featuring premium hydraulic components, a robust sound-insulated steel enclosure, and an advanced high-capacity cooling system, they deliver consistent power, simplified maintenance, and dependable operation in the demanding conditions of marine, offshore, and civil engineering projects.
Main Features
Reliable Hydraulic Performance
Our hydraulic power packs are engineered to deliver consistent hydraulic power for impact hammers, vibro hammers, rotary heads, and other hydraulic equipment. Premium pumps, valves, and hydraulic components ensure reliable performance, precise control, and maximum operational efficiency, even under demanding working conditions.
Built for Continuous Operation
Designed for heavy-duty applications, our power packs feature a high-capacity cooling system and oversized radiator that maintain optimal operating temperatures during prolonged use. Combined with a robust, sound-insulated steel enclosure, they provide dependable performance, reduced noise levels, and a long operational service life in marine, offshore, and civil engineering environments.
Easy Maintenance
Maintenance efficiency is built into every power pack. A spacious internal layout provides quick and convenient access to all major components, reducing service times and minimizing downtime. The durable enclosure protects critical systems from harsh operating environments, ensuring maximum equipment availability and lower lifetime operating costs.
40P
Max Frequency: 980 RPM
Max Oil Flow: 25L/min
Weight: 1500 kg
Dimensions (LxWxH): 1312 x 1212 x 1650 mm
Max Power: 11 KW
Diesel Tank Volume: Not Applicable
Hydraulic Oil Tank Volume: 250 L
200P
Max Frequency: 2000 rpm
Max Oil Flow: 200 L/min
Weight: 5000 kg
Dimensions (LxWxH): 3350x1500x2050 mm
Max Power: 150 KW / 202 HP
Diesel Tank Volume: 400 L
Hydraulic Oil Tank Volume: 800 L
300P
Max Frequency: 2000 rpm
Max Oil Flow: 300 L/min
Weight: 5100 kg
Dimensions (LxWxH): 3350 x 1500 x 2050 mm
Max Power: 194 KW / 260 HP
Diesel Tank Volume: 450 L
Hydraulic Oil Tank Volume: 800 L
400P
Max Frequency: 2200 rpm
Max Oil Flow: 400 L/min
Weight: 6000 kg
Dimensions (LxWxH): 3910 x 1520 x 2100 mm
Max Power: 264 KW
Diesel Tank Volume: 500 L
Hydraulic Oil Tank Volume: 1400 L
500P
Max Frequency: 2100 rpm
Max Oil Flow: 500 L/min
Weight: 6000 kg
Dimensions (LxWxH): 3910 x 1520 x 2100 mm
Max Power: 298 KW / 450 HP
Diesel Tank Volume: 500 L
Hydraulic Oil Tank Volume: 1600 L
600P
Max Frequency: 2100 rpm
Max Oil Flow: 630 L/min
Weight: 8200 kg
Dimensions (LxWxH): 4550 x 1820 x 2400 mm
Max Power: 403 KW / 540 HP
Diesel Tank Volume: 600 L
Hydraulic Oil Tank Volume: 2000 L

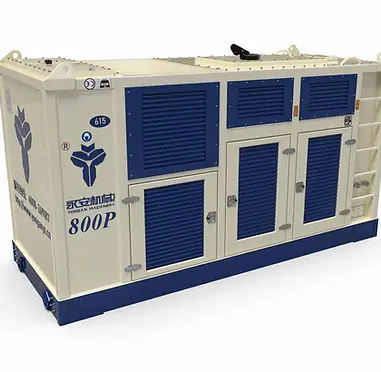

800P
Max Frequency: 2100 rpm
Max Oil Flow: 800 L/min
Weight: 9000 kg
Dimensions (LxWxH): 4450 x 1850 x 2520 mm
Max Power: 522 KW / 700 HP
Diesel Tank Volume: 600 L
Hydraulic Oil Tank Volume: 2200 L
1200P
Max Frequency: 1800 rpm
Max Oil Flow: 1200 L/min
Weight: 20000 kg
Dimensions (LxWxH): 6050 x 2350 x 2820 mm
Max Power: 895 KW / 1200 HP
Diesel Tank Volume: 1000 L
Hydraulic Oil Tank Volume: 4200 L
1400P
Max Frequency: 2100 rpm
Max Oil Flow: 1400 L/min
Weight: 15900 kg
Dimensions (LxWxH): 4440 x 2920 x 2620 mm
Max Power: 1044 KW / 1400 HP
Diesel Tank Volume: 1000 L
Hydraulic Oil Tank Volume: 4200 L
1600P
Max Frequency: 1900 rpm
Max Oil Flow: 1600 L/min
Weight: 20000 kg
Dimensions (LxWxH): 6050 x 2350 x 2820 mm
Max Power: 1007 KW / 1350 HP
Diesel Tank Volume: 1000 L
Hydraulic Oil Tank Volume: 4200 L
2600P
Max Frequency: 2000 rpm
Max Oil Flow: 2600 L/min
Weight: 23500 kg
Dimensions (LxWxH): 7310 x 2360 x 2750 mm
Max Power: 1490 KW / 2000 HP
Diesel Tank Volume: 1400 L
Hydraulic Oil Tank Volume: 5200 L
3000P
Max Frequency: 2000 rpm
Max Oil Flow: 2600 L/min
Weight: 23500 kg
Dimensions (LxWxH): 7310 x 2360 x 2750 mm
Max Power: 1490 KW / 2014 HP
Diesel Tank Volume: 1400 L
Hydraulic Oil Tank Volume: 5200 L
3500P
Max Frequency: 1500 rpm
Max Oil Flow: 3500 L/min
Weight: 38000 kg
Dimensions (LxWxH): 8200 x 2920 x 3600 mm
Max Power: 1939 KW / 2599 HP
Diesel Tank Volume: 1420 L
Hydraulic Oil Tank Volume: 6400 L
Summary Technical Specifications
Image | Name | Max Frequency | Max Oil Flow | Weight | Dimensions (LxWxH) | Max Power | Diesel Tank Volume | Hydraulic Oil Tank Volume |
|---|---|---|---|---|---|---|---|---|
40P | 980 rpm | 25 L/min | 1500 kgs | 1312 x 1212 x 1650 mm | 11 KW | 250 L | ||
200P | 2000 rpm | 200 L/min | 5000 kg | 3350x1500x2050 mm | 150 KW / 202 HP | 400 L | 800 L | |
300P | 2000 rpm | 300 L/min | 5100 kg | 3350 x 1500 x 2050 mm | 194 KW / 260 HP | 450 L | 800 L | |
400P | 2200 rpm | 400 L/min | 60000 kg | 3910 x 1520 x 2100 mm | 264 KW | 500 L | 1400 L | |
500P | 2100 rpm | 500 L/min | 6000 kg | 3910 x 1520 x 2100 mm | 298 KW / 450 HP | 500 L | 1600 L | |
600P | 2100 rpm | 630 L/min | 8200 kg | 4550 x 1820 x 2400 mm | 403 KW / 540 HP | 600 L | 2000 L | |
800P | 2100 rpm | 800 L/min | 9000 kg | 4450 x 1850 x 2520 mm | 522 KW / 700 HP | 600 L | 2200 L | |
1200P | 1800 rpm | 1200 L/min | 20000 kg | 6050 x 2350 x 2820 mm | 895 KW / 1200 HP | 1000 L | 4200 L | |
1400P | 2100 rpm | 1400 L/min | 15900 kg | 4440 x 2920 x 2620 mm | 1044 KW / 1400 HP | 1000 L | 4200 L | |
1600P | 1900 rpm | 1600 L/min | 20000 kg | 6050 x 2350 x 2820 mm | 1007 KW / 1350 HP | 1000 L | 4200 L | |
2600P | 2000 rpm | 2600 L/min | 23500 kg | 7310 x 2360 x 2750 mm | 1490 KW / 2000 HP | 1400 L | 5200 L | |
3000P | 2000 rpm | 2600 L/min | 23500 kg | 7310 x 2360 x 2750 mm | 1490 KW / 2014 HP | 1400 L | 5200 L | |
3500P | 1500 rpm | 3500 L/min | 38000 kg | 8200 x 2920 x 3600 mm | 1939 KW / 2599 HP | 1420 L | 6400 L |
